Image Fusion Angio

How to Accept or Decline Automatically Generated Pairs



You must review each pair before continuing with the fusion process. Only paired images can be fused.

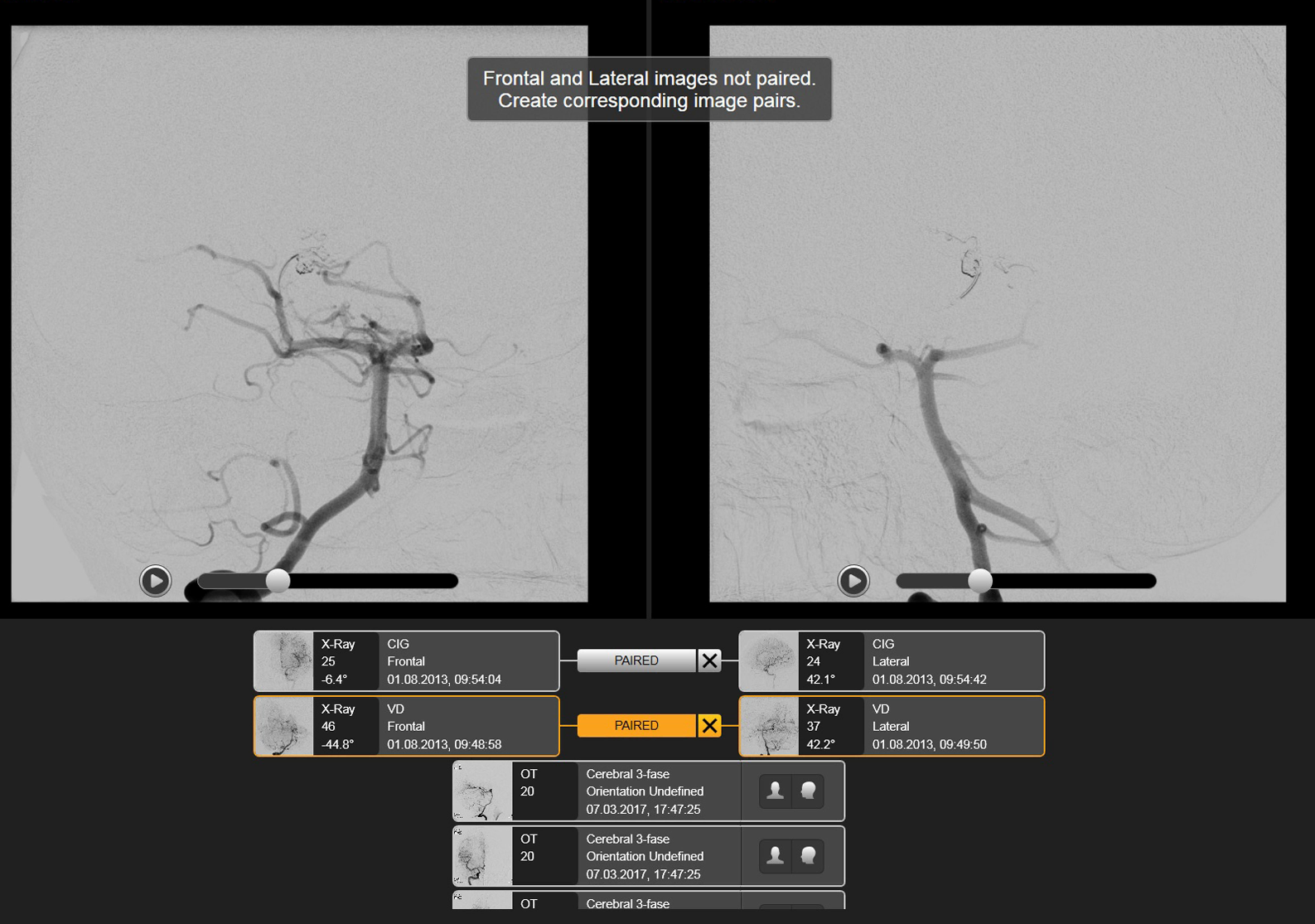

The active pair, shown with an orange border, corresponds to the displayed image set.

Step

1.

Review the pairing in orange and confirm that it is acceptable. If it is not acceptable, select X to decline the pair.

2.

When you accept the pair, the status changes to PAIRED.

3.

Continue with the remaining pairs.

To switch to a different pair, select your preferred image pair.

Only accept the pairs you want. When a minimum of one pair is accepted, you may proceed to the next step.

4.

Select Next. The fusion screen opens.

Art-No. 60919-80EN

Utstedelsesdato: 2019-11-27
