How to Use Blending

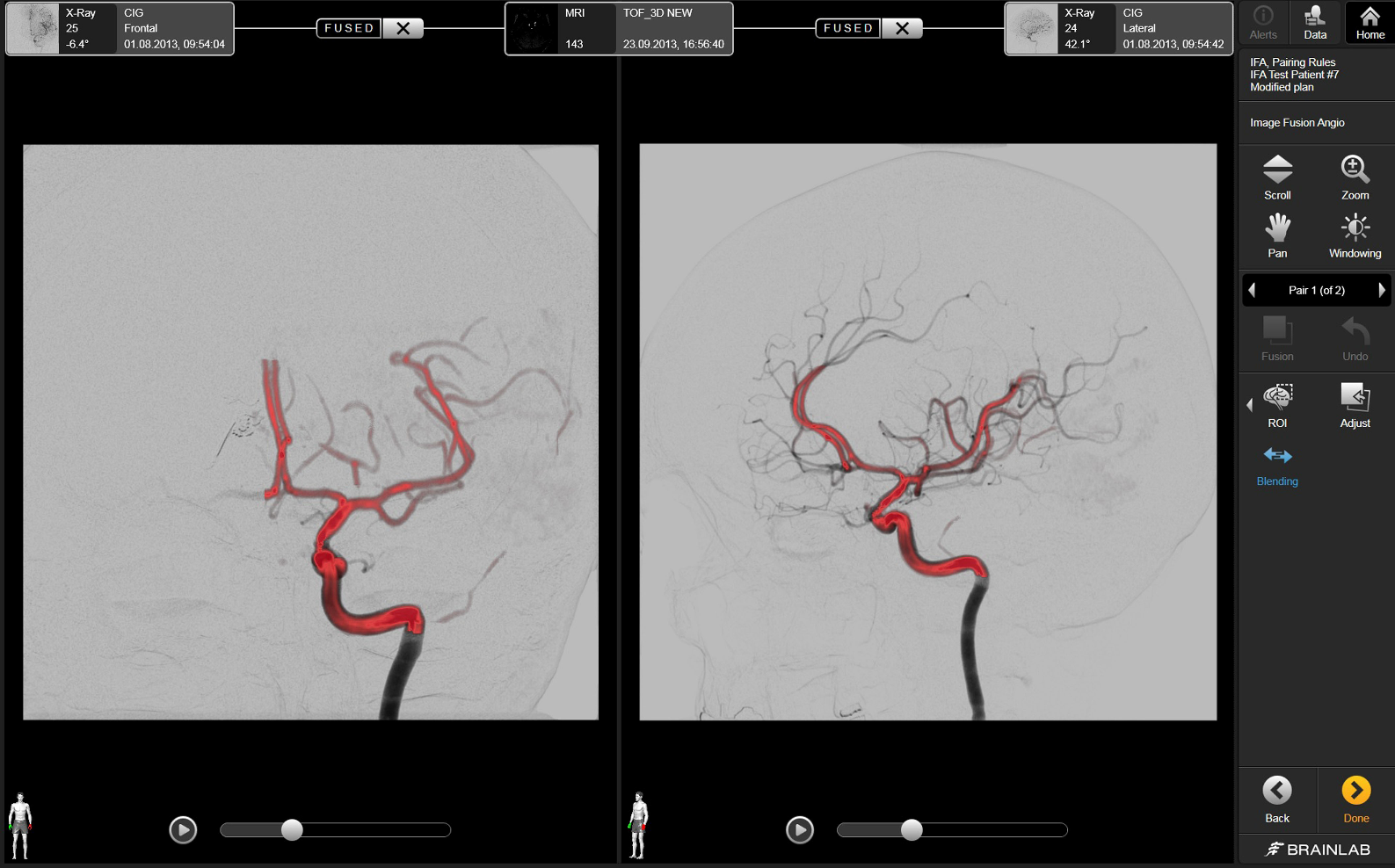

Blending allows you to compare the alignment of the 3D image set with the DSA image by gradually changing the opacity of the 3D image. You can then manually improve alignment. The software uses a red overlay for vessels.
Step | ||
|---|---|---|
1. |  | Select Blending. |
2. | Drag mouse/finger to the left or right inside the image to incrementally adjust the transparency. Alternatively, start the Movie Player Control to view Blending. The default for Blending is set at approximately one-third of the slider. For best fusion results, reduce the contrast on the slider after manually aligning – but before selecting – Fusion. | |
