How to Manually Adjust Fusion Results
Step | ||
|---|---|---|

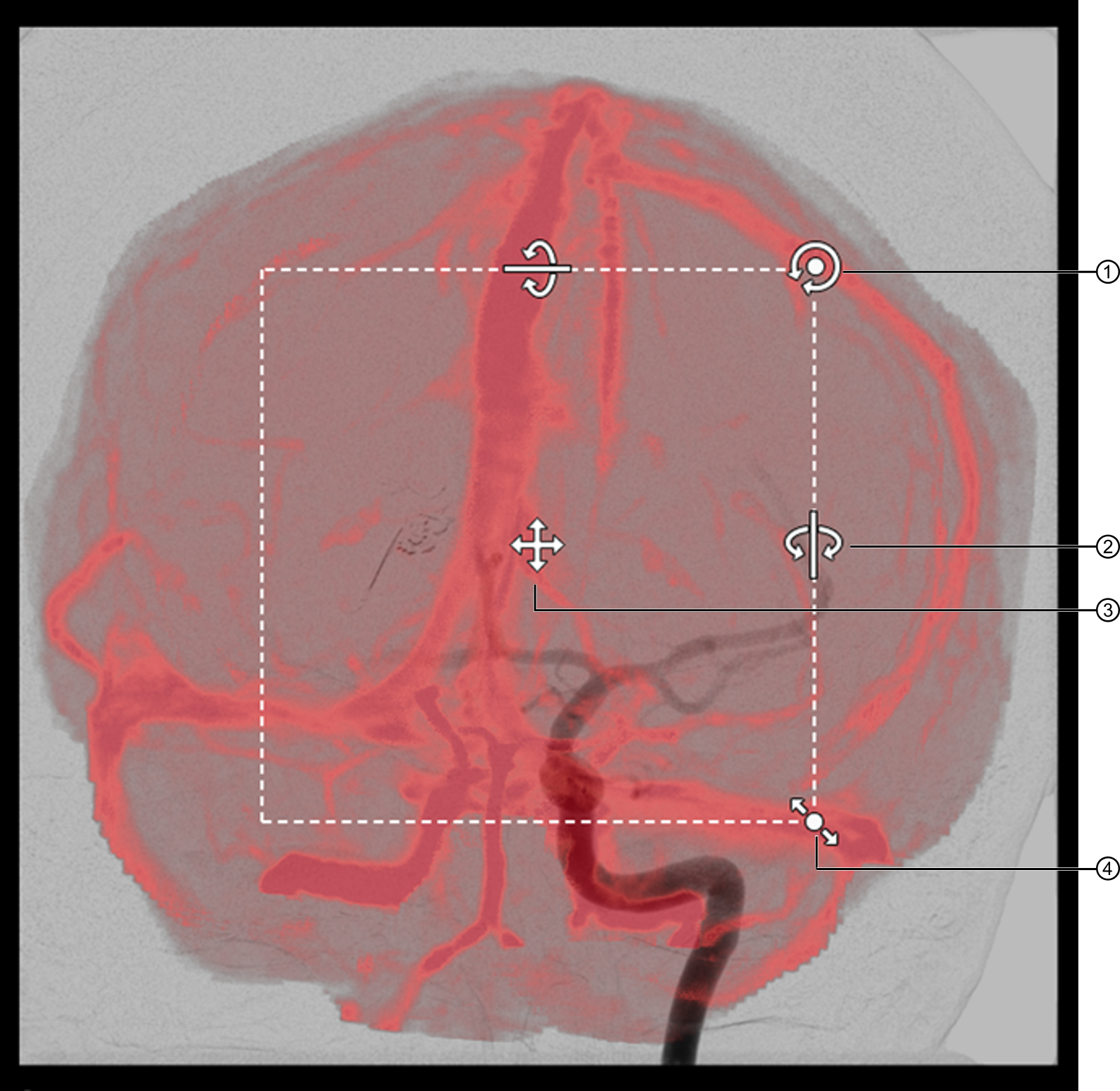

1. |  | Select Adjust from the toolbar. A dotted white frame appears in the center of both images. |
2. | Working with one image at a time, position the image within the brain mask by dragging the cross symbol in the center ③. | |
3. | Enlarge or decrease the image size by dragging the arrow ④. | |
4. | Rotate the image on its vertical or horizontal axis by dragging the curved handles ②. The orientation guide in the lower left corner of the view provides orientation guidance. | |
5. | Rotate the image to the left or right by dragging the circular handle ①. | |
6. | Use Movie Player Control to verify images are aligned. | |
