Cranial Layout

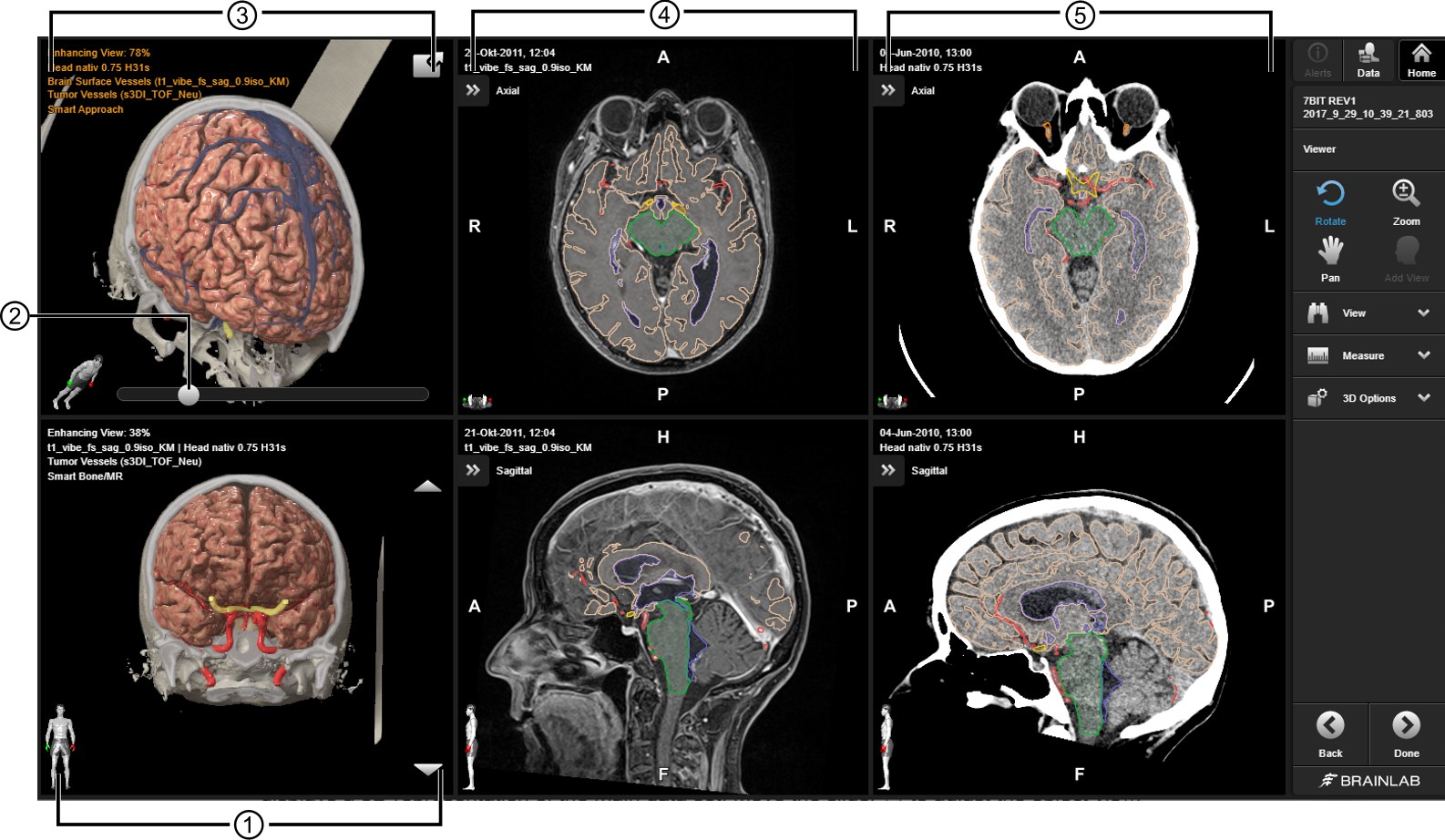

The Cranial layout contains a maximum of six views from four data sets. The left-hand view port displays a 3D representation of the main data set. Move the slider ② to adjust the object view. Use the in-view buttons to scroll through the data set. Alternatively, you can use the mouse wheel.
No. | Description |
|---|---|
① | Smart Bone/MR view |
② | Slider used for cropping the 3D reconstruction and viewing internal objects |
③ | Smart Approach view containing a 3D reconstruction of the head using brain surface vessels and skin |
④ | Axial, coronal, sagittal or slice view for data set 1 |
⑤ | Axial, coronal, sagittal or slice view for data set 2 |
