Thickness
The Thickness function is only available for original slices if the following conditions are met:
- The slice distance is the same over the whole image set
- The maximum slice distance is 2 mm
- The maximum difference between slice distance and slice thickness does not exceed 10%

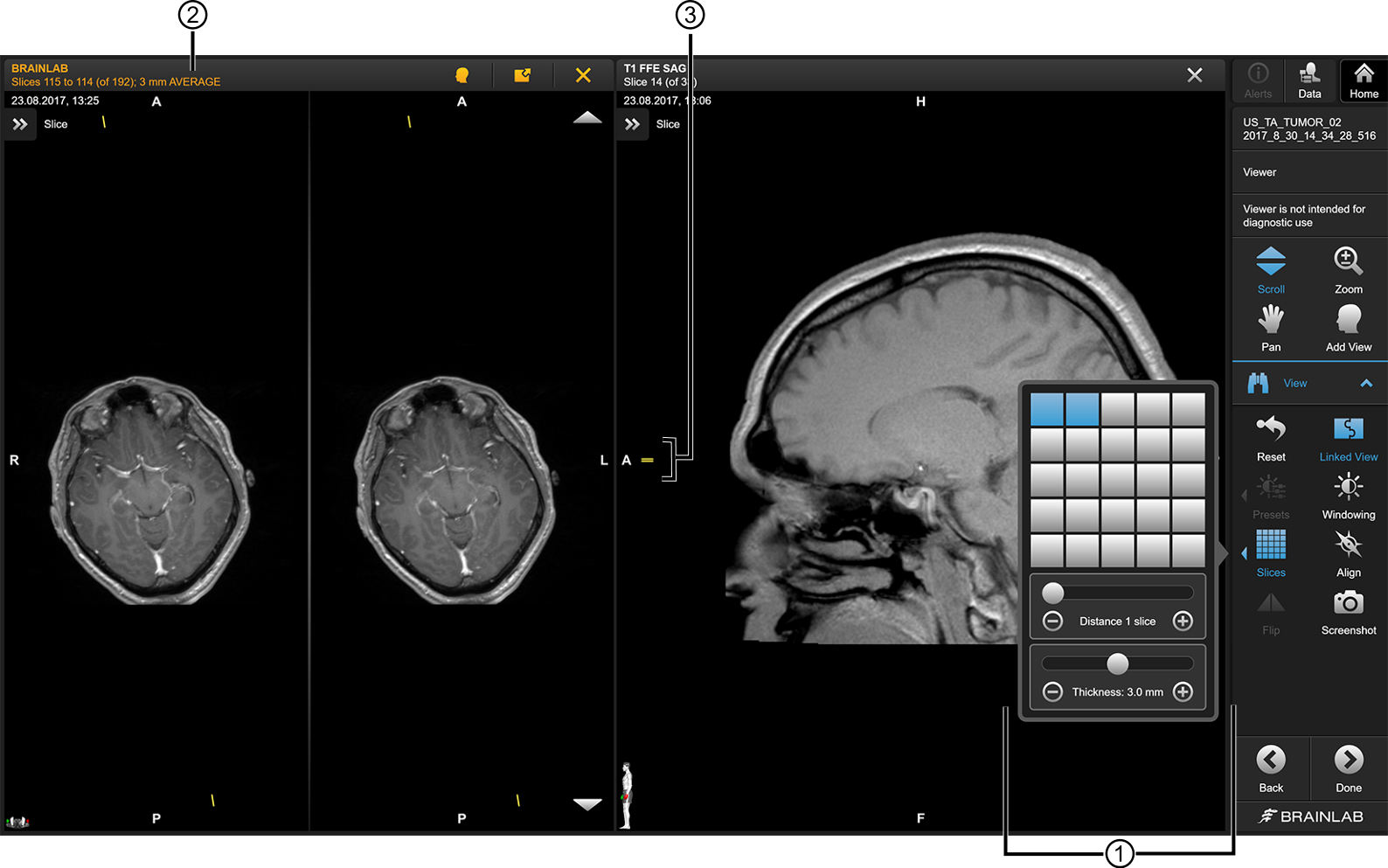

| No. | Explanation |
|---|---|
① | Slider bar for adjusting slice thickness. The thickness range depends on the distance between slices and cannot exceed a maximum of 6 mm total thickness. |
② | The averaged thickness is indicated in the header (in front of AVERAGE). |
③ | The thickness of the averaged area. |
