Dose Review

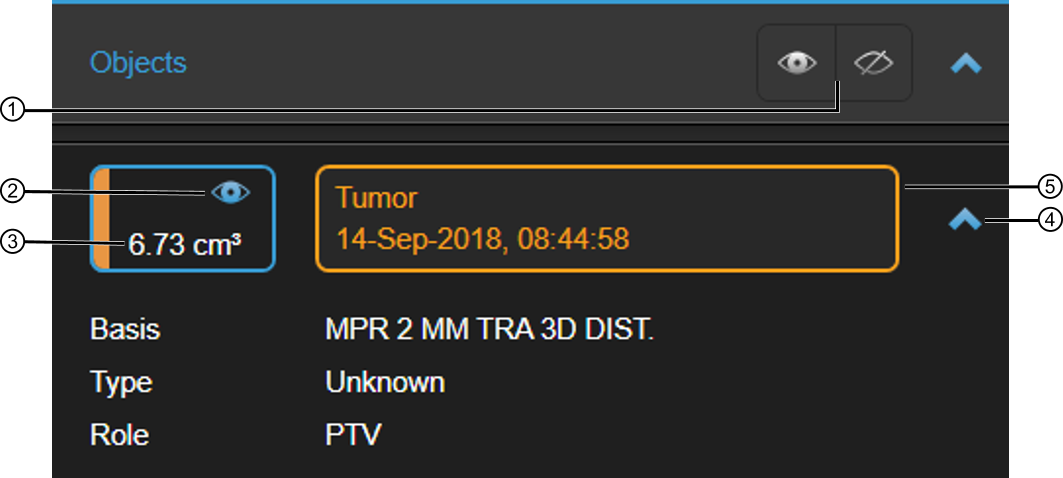

Objects



No.Component

To make all objects visible/hidden, click on the open/closed eye icons.

If an object is visible, it is displayed with a blue border and eye icon. To hide an object, click on it.

By default, the defined objects except the Outer Contour and objects with Type = Whole Brain are set to visible.

Object volume.

Click on the arrow beside the object of interest to see additional information:

  • Basis: Lists the image set used for creation of the object

  • Type: Displays the type of the object (e.g., tumor)

  • Role: Displays the role (e.g., PTV)



If a single object is selected, it is highlighted in orange, all views are centered on that object and a box appears in the 3D View, 1 x 1 View and Side by Side View layouts with the following additional information:

  • Name of the object: Lists the image set used for creation of the object

  • Size: volume and diameter of the object
  • CI: Conformity index based on the reference plan
  • GI: Gradient index based on the reference plan
  • Prescription information: Dose and number of fractions
