Angle-toiminnon avulla voit mitata minkä tahansa kolmen samalla tasolla olevan pisteen kulman.
Toimenpiteet | ||
|---|---|---|
1. |  | Valitse Angle. |

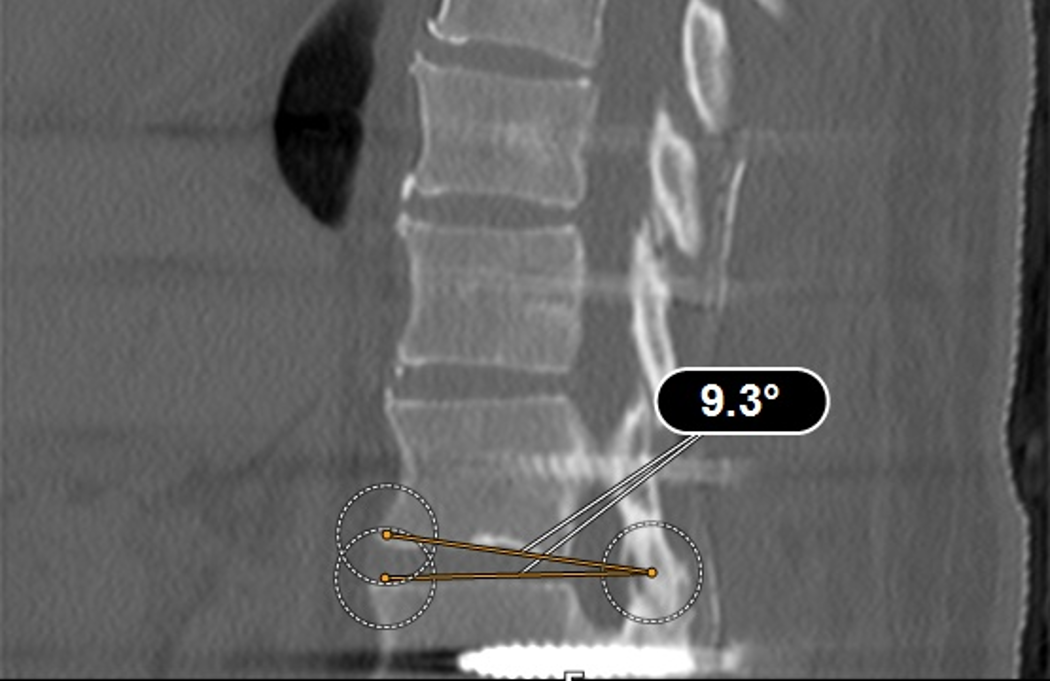

2. | Valitse piste kuvassa. Näyttöön tulee kulma. | |
3. | Aseta pisteet haluamallasi tavalla valitsemalla ne ja vetämällä niitä. Valittujen pisteiden välinen kulma lasketaan ja näytetään. | |
Date of issue: 2019-10-07
