Cranial Layout

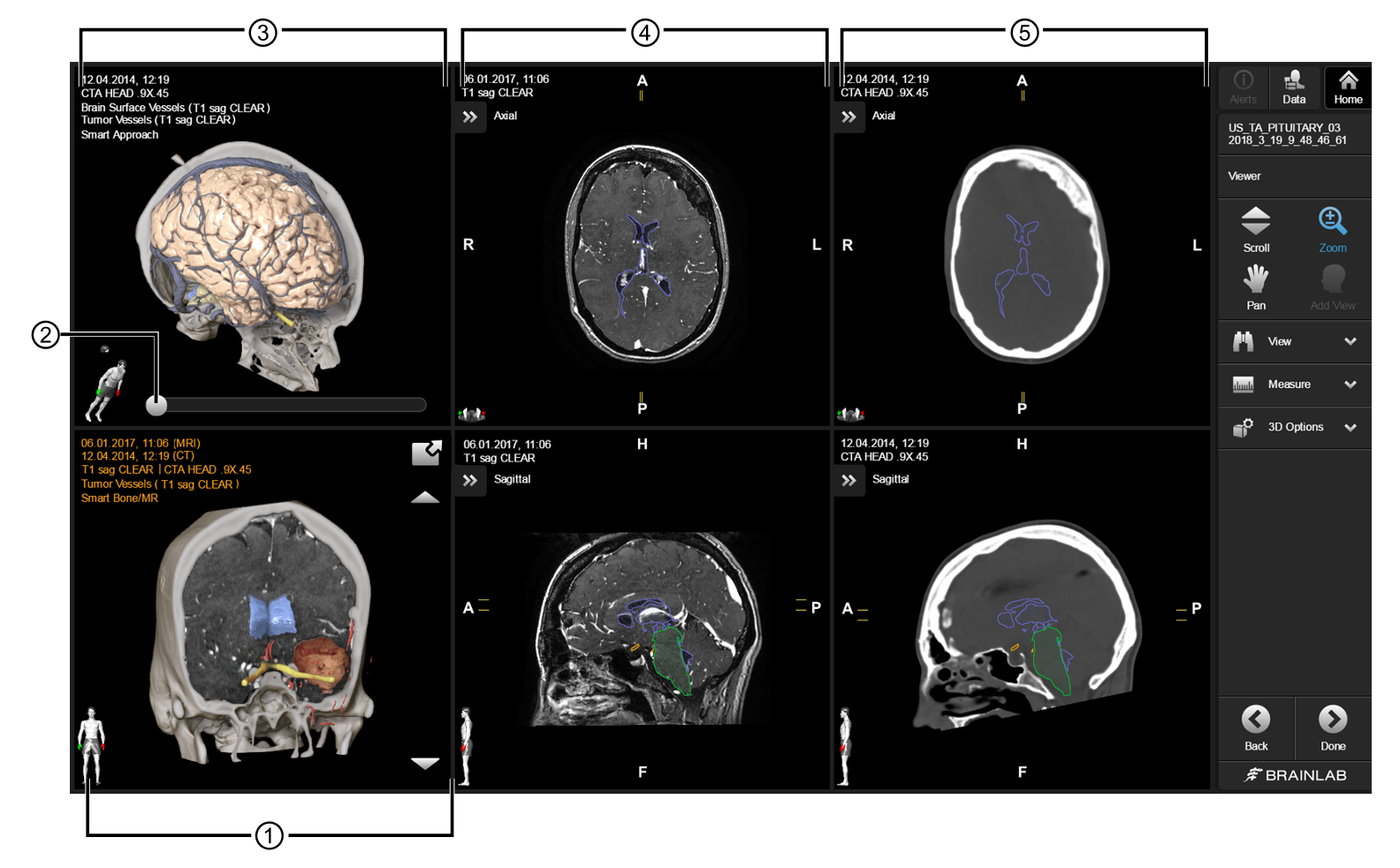

The Cranial layout contains a maximum of six views from four data sets. The left-hand view port displays a 3D representation of the main data set. Move the slider to adjust the object view. Use the in-view buttons to scroll through the data set. Alternatively, you can use the mouse wheel.

No.

Description

Smart Bone/MR view

Slider used for cropping the 3D reconstruction and viewing internal objects

Smart Approach view containing a 3D reconstruction of the head using brain surface vessels and skin

Axial, coronal, sagittal or slice view for data set 1

Axial, coronal, sagittal or slice view for data set 2
