Thickness



The Thickness function is only available for original slices if the following conditions are met:

  • The slice distance is the same over the whole image set
  • The maximum slice distance is 2 mm
  • The maximum difference between slice distance and slice thickness does not exceed 10%

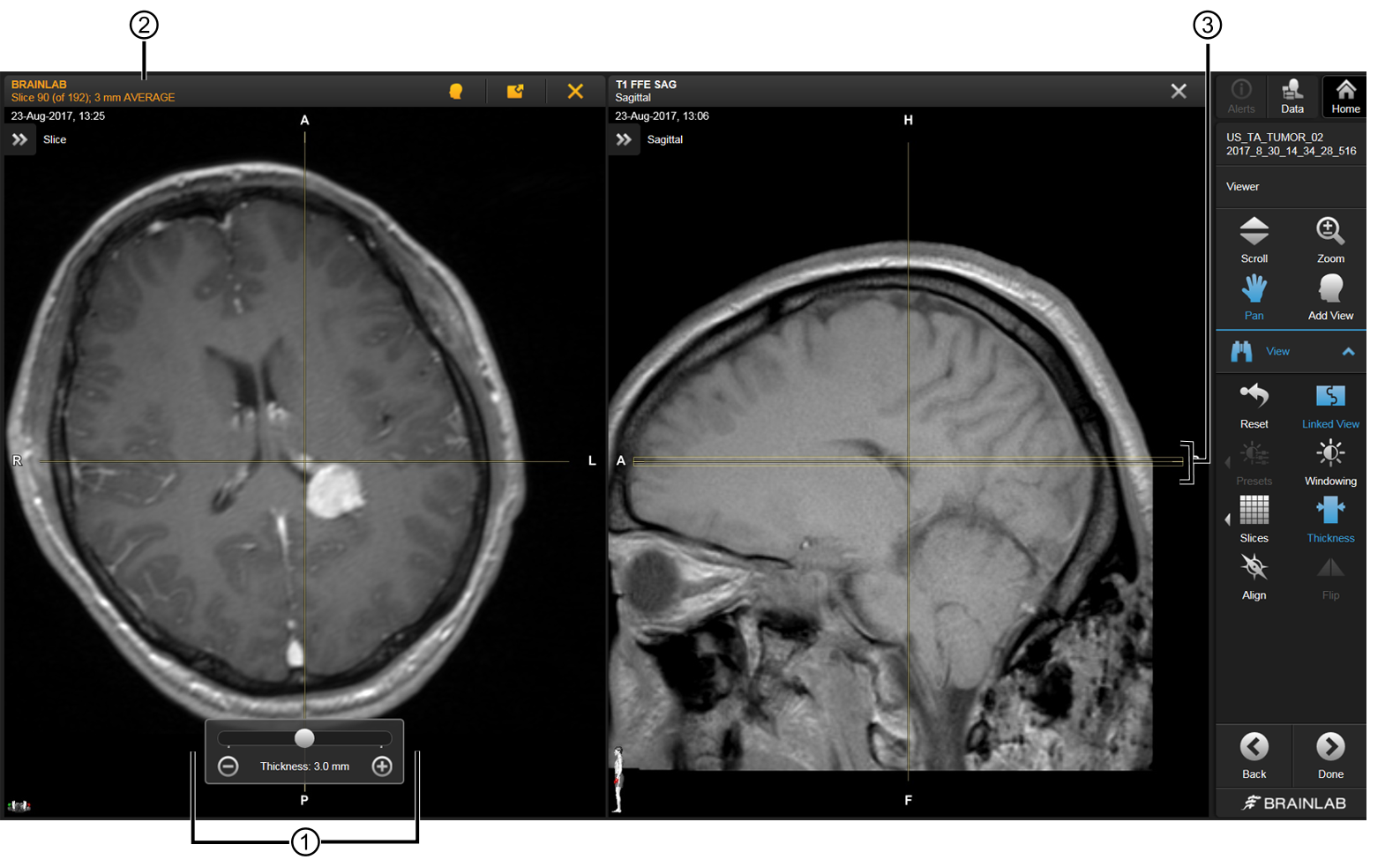

No.

Explanation

Slider bar for adjusting slice thickness. The thickness range depends on the distance between slices and cannot exceed a maximum of 6 mm total thickness.

The averaged thickness is indicated in the header (in front of AVERAGE).

A box indicates the thickness of the averaged area.
