How to Measure Angles



The Angle function allows you to measure the angle of any three points on the same plane.

Step

1.

Select Angle.

2.

Select a point in the image.

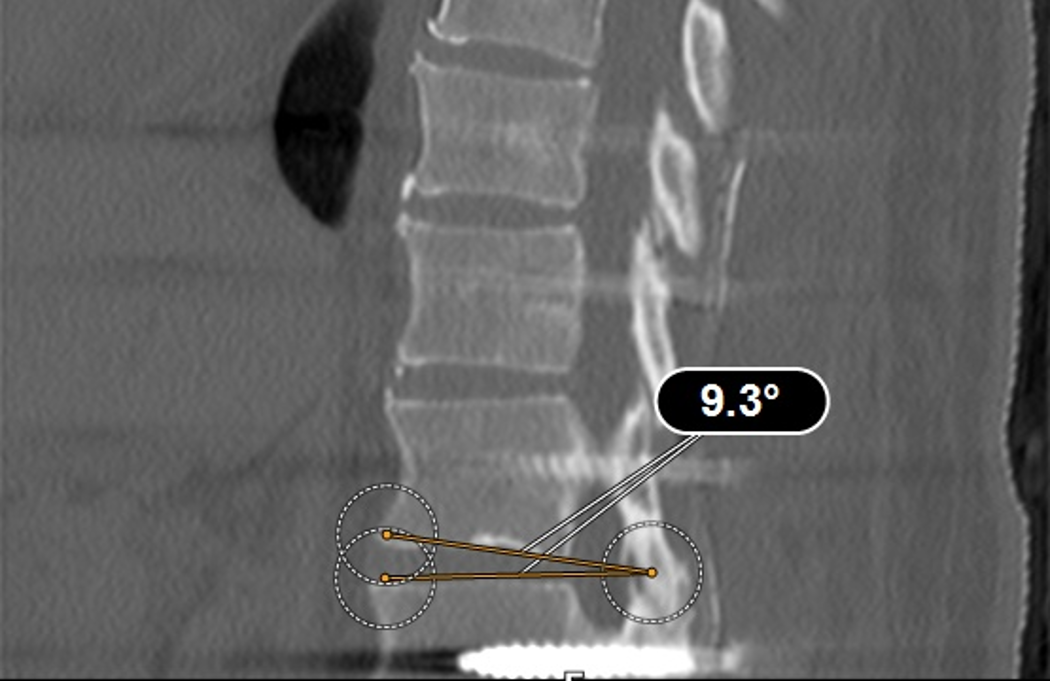

An angle appears on the screen.

3.

Reposition the points as needed by selecting and dragging them.

The angle between the selected points is calculated and displayed.
