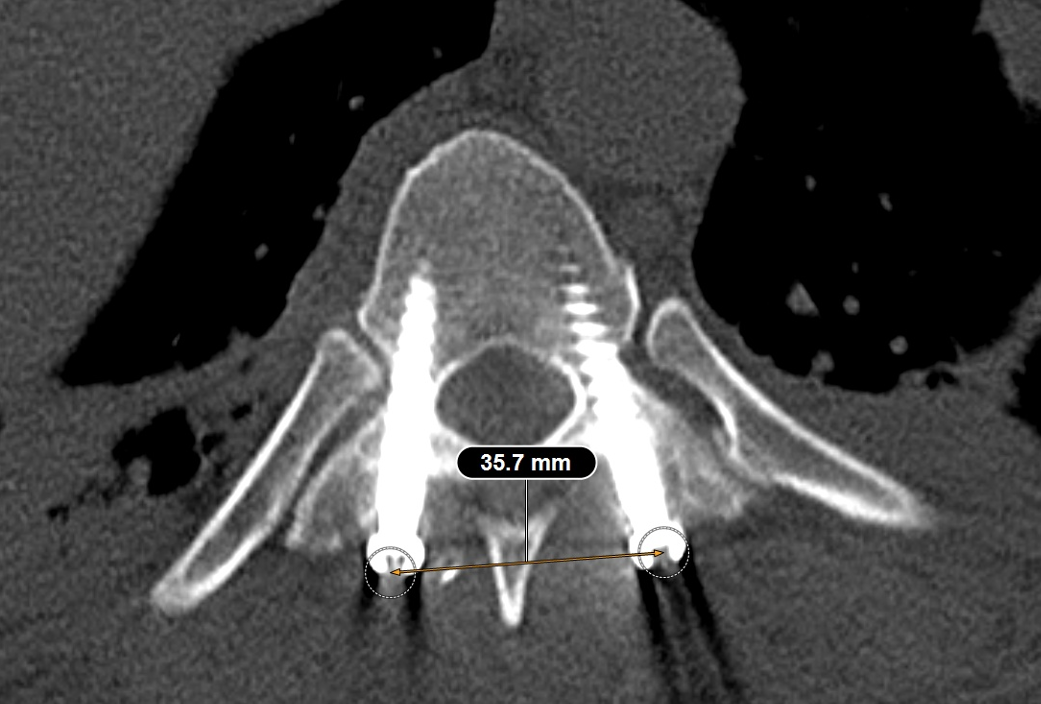

A função Distance (Distância) permite medir a distância entre quaisquer dois pontos na imagem.
Etapa | ||
|---|---|---|
1. |  | Selecione Distance (Distância). |
2. | Selecione qualquer ponto na imagem. Uma linha aparece na tela. | |
3. | Reposicione os pontos conforme necessário, selecionando e arrastando os pontos das extremidades. A distância é calculada e exibida em milímetros entre os pontos selecionados. | |
