Reviewing the Dose
Once a dose plan has been calculated, review the dose distribution and isodose lines for the PTV. The following view options are available in the Dose menu (located in the sidebar).

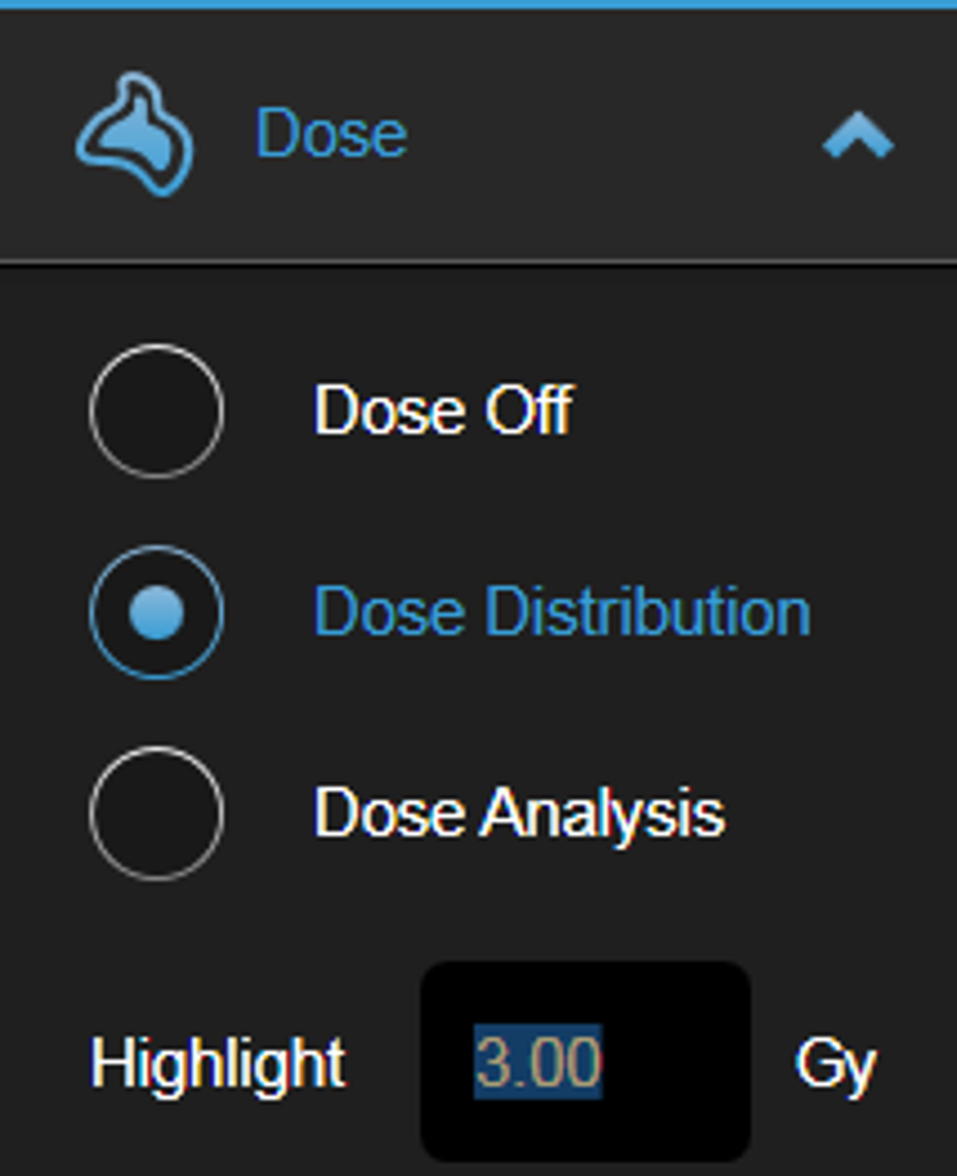

Dose Menu Settings
The Dose menu provides options for viewing the dose distribution.
Isodose lines are not displayed.
Isodose lines are displayed.
View any overdose and underdose regions with hot and cold points in all objects, the PTV and others.
