How to Re-Open the ROI Definition Dialog

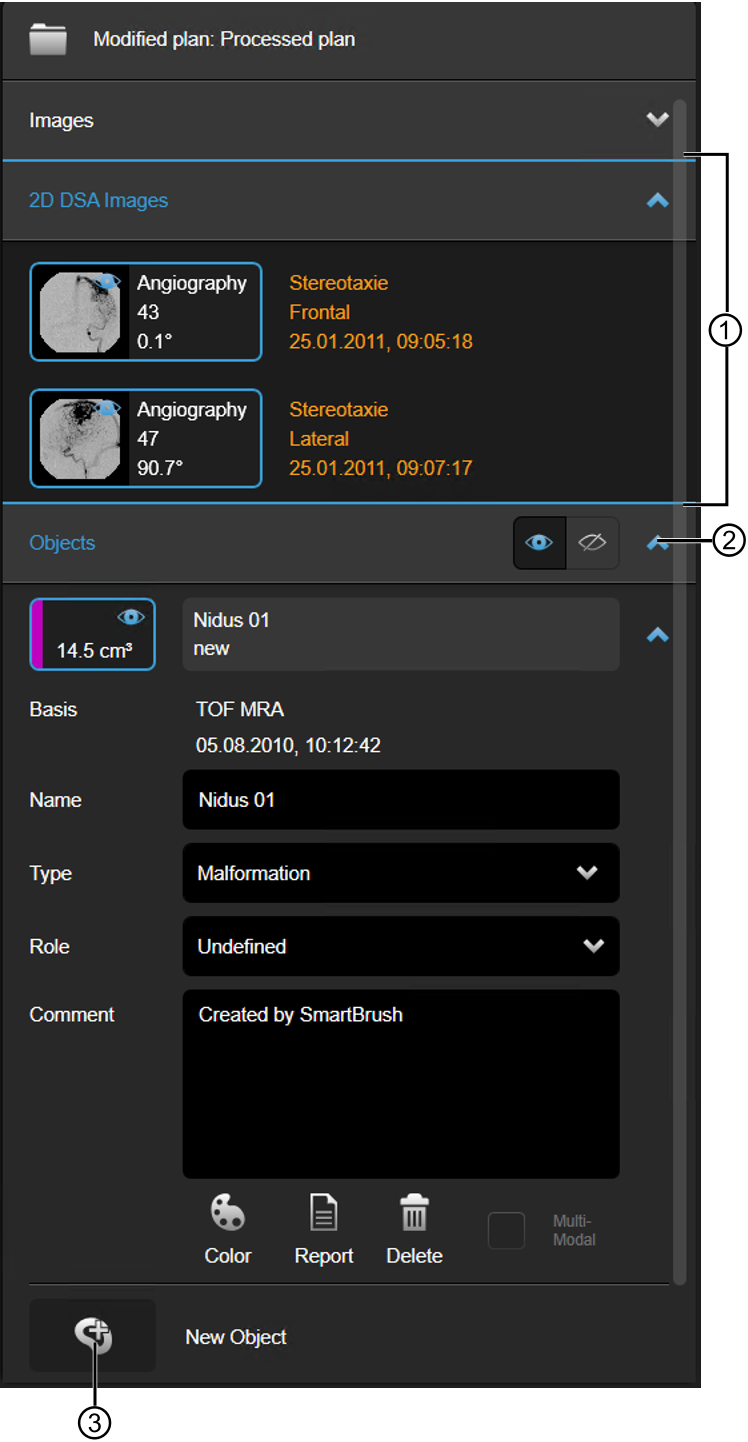

Step | |
---|---|
1. | Select Data. |
2. | Select the relevant pair of 2D DSA images ①. |
3. | Open the Objects menu by selecting the arrow ②. |
4. | Select New Object ③. |
