Background

SmartBrush automatically selects the most relevant data set and a default display.

To adjust the default layout, image set and/or object list that is displayed, select Data to open the data menu.

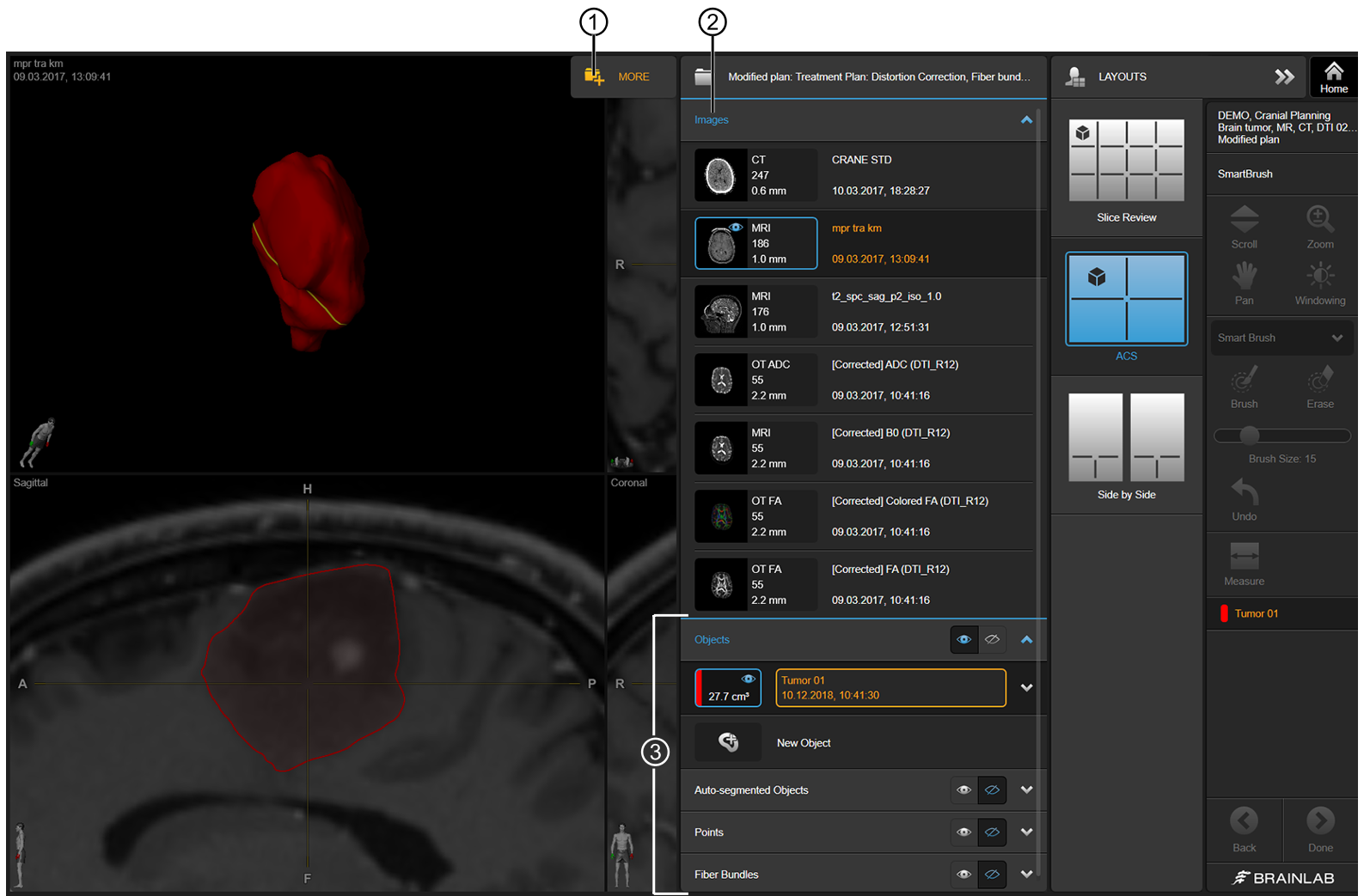

Using the Data Menu



No.Description

Select MORE to load additional patient data.

List of available image sets

Other available content (e.g., Objects, Auto-segmented Objects, Points or Fiber Bundles)

Viewing Image Properties

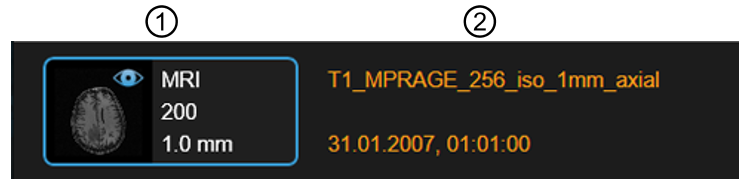

Under Images, all image sets are displayed as thumbnail images and show the following properties:

No.Components

  • Image modality (e.g., MRI)
  • Number of slices
  • Slice distance

  • Image set name
  • Date and time of acquisition

Viewing 2D DSA Image Properties

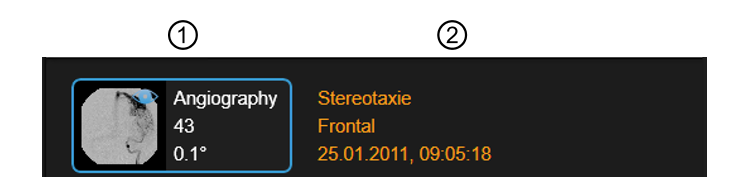

Under 2D DSA Images, all image sets are displayed as thumbnail images and show the following properties:

No.Components

  • Image modality (e.g., X-ray)
  • Number of frames
  • Angle at which image was taken

  • Name of the image
  • Orientation (e.g., frontal)
  • Date and time of acquisition

Viewing Object Properties

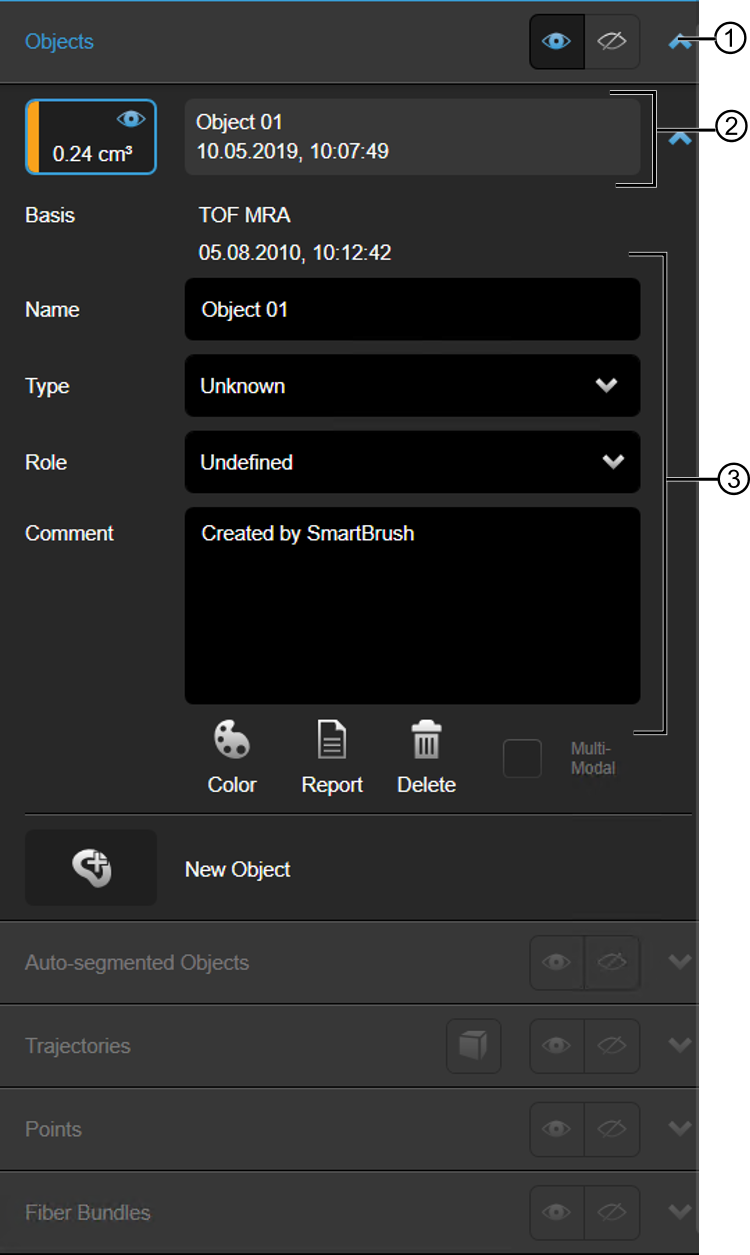

Select the arrow to open other content menus, such as Objects, Auto-segmented Objects, Trajectories, Points or Fiber Bundles.

You can view object properties or edit object characteristics at any time via the Data menu.

ButtonFunction


Assign a color to an object.


Create a volumetric report.


Remove an object from the current selection.



Enable multi-modal object creation.



Create a new object.

Visibility Options

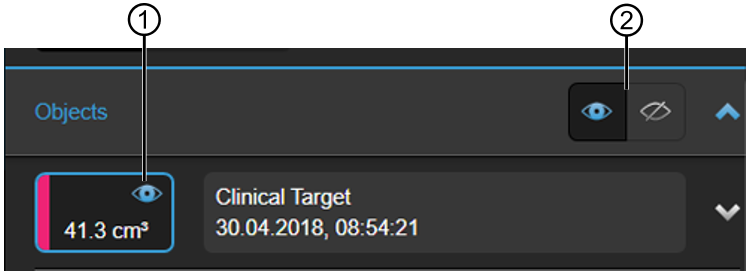

To show/hide a specific object, select the open/closed eye button within the object .

Select the open/closed eye buttons on the drop-down menu to show/hide all objects.
