Advanced Windowing

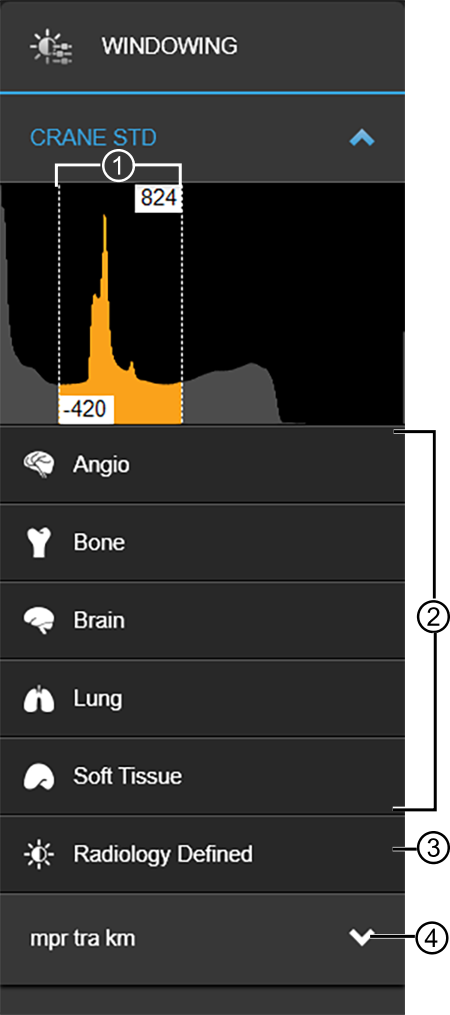

Advanced Windowing is available for any 3D image set. Windowing opens a histogram of the selected 3D image set in a sidebar.
| No. | Explanation |
|---|---|
① | Adjust the borders to limit the windowing to a specific range. |
② | Preset windowing settings are available for CT image sets which are optimized to display particular structures such as bone, lung or soft tissue. |
③ | Select Radiology Defined to return back to the original state. |
④ | Select the arrows to expand or collapse the histogram for a certain image set when more than one image set is displayed. |
