Cranial IGS System Ultrasound Navigation

Содержание

How to Use Scan Mode to Acquire 3D Ultrasound



Step

1.

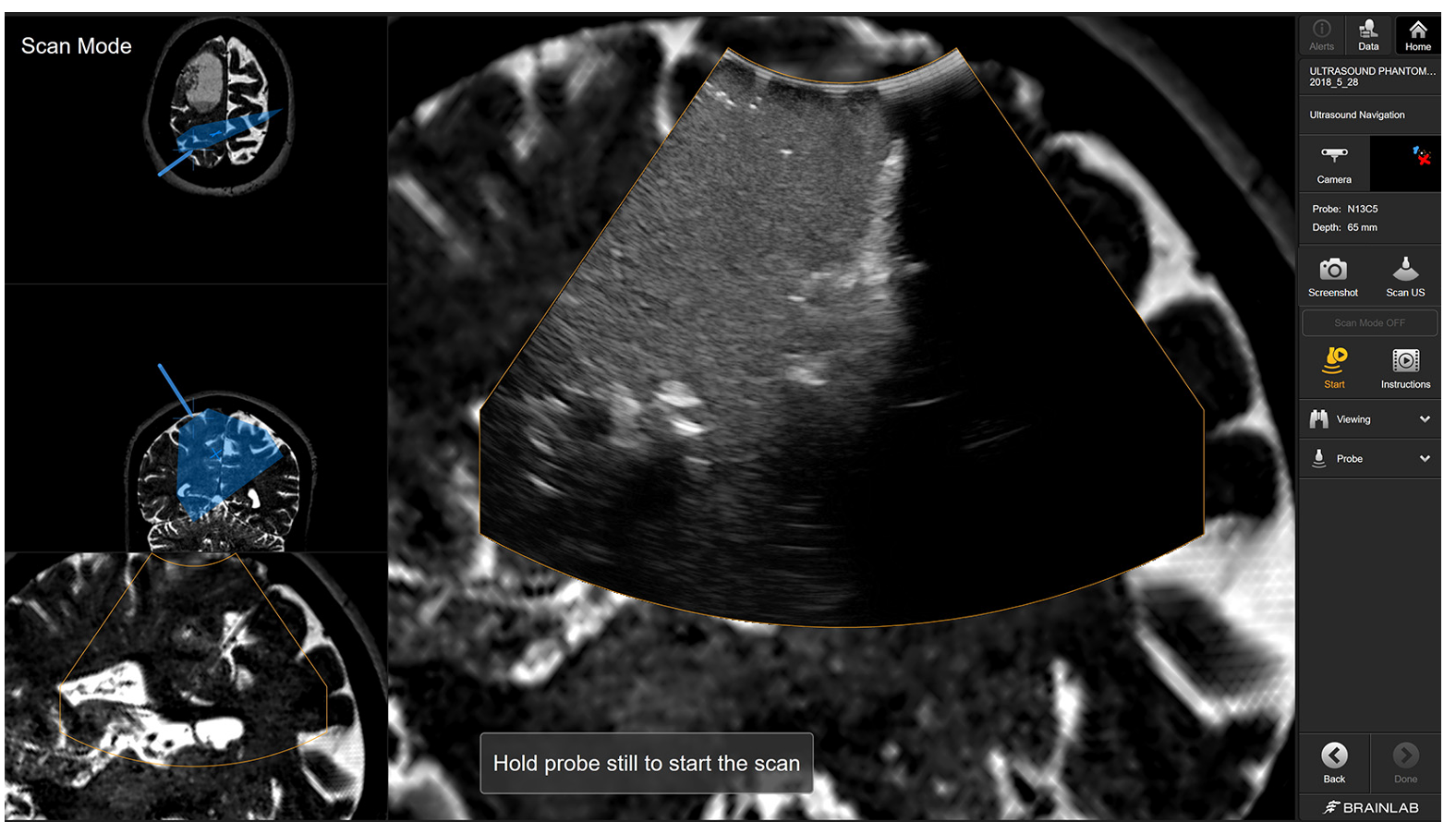

To reach scan mode, select Scan US from the toolbar or hold the visible probe steady while in Live Ultrasound.

A progress bar will appear to indicate the amount of time the probe needs to be hold steady.

2.

Bring the probe into position and select Start, or:

  • Hold the probe steady and wait a few seconds. A progress bar will appear to indicate the amount of time the probe needs to be hold steady.
  • Press the button on the probe twice (i.e., freeze-unfreeze).

3.

Scan Mode ON turns green and the scan starts.

4.

To perform a scan, move the probe slowly in a single sweep motion.

The software emits an audible tone as the probe moves over the scan area.

5.

When you are finished, select Stop, or

  • Press the button on the probe once (i.e., freeze).
  • Move the probe away from the patient. The scan stops automatically.

6.

The software processes the images and a progress bar fills.

To stop the reconstruction, select Cancel. Any data just acquired will be discarded.

Start a new scan.

7.

When the reconstruction is complete, you can review the 3D ultrasound with the preoperative MR and/or previous ultrasound scans via the Comparison or Resection Progress layouts.

8.

To change to a different layout, select Data.
