How to Select the Machine Profile and Protocol



Step

1.

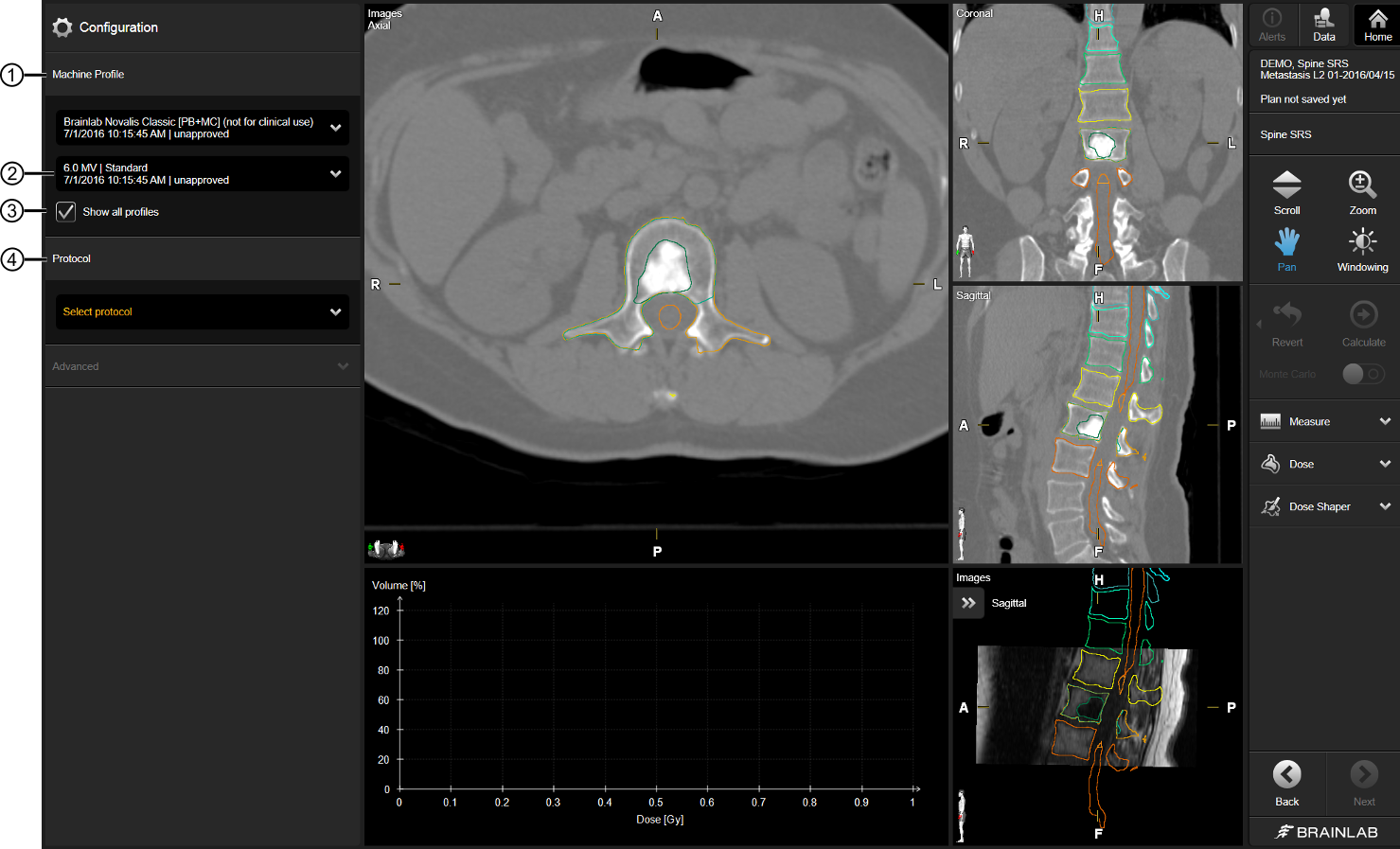

In the Configuration menu, first select a machine profile from the drop-down list . The creation date and time are displayed to identify the machine profile.

As a default, only approved machine profiles are listed. To see the complete list, check the box next to Show all profiles.

2.

Select an energy modality from the drop-down list . The creation date and time are displayed to identify the energy modality.

As a default, only approved energy modalities are listed. To see the complete list, check the box next to Show all profiles.

As soon as an energy modality is selected, the Protocol selection drop down is activated.

3.

Select a Protocol from the drop-down list .

After you select the protocol, the software loads the values defined in the template (e.g., prescription dose, fractionation, constraint settings for the PTV and OARs) and displays them in the Plan Analysis table. These values must be reviewed and can be modified in the Clinical Protocol Editor. Some values can be modified in the Advanced drop-down menu.

Warning
Art-No. 60919-40EN
