Image Fusion Angio

Fusing Image Pairs

Introduction to Fusing Image Pairs



After you have accepted pairs and the initial position has been calculated, you can initiate fusion between the 2D images and the 3D image. The 3D image is displayed as a red maximum intensity projection (MIP) superimposed over the 2D image.

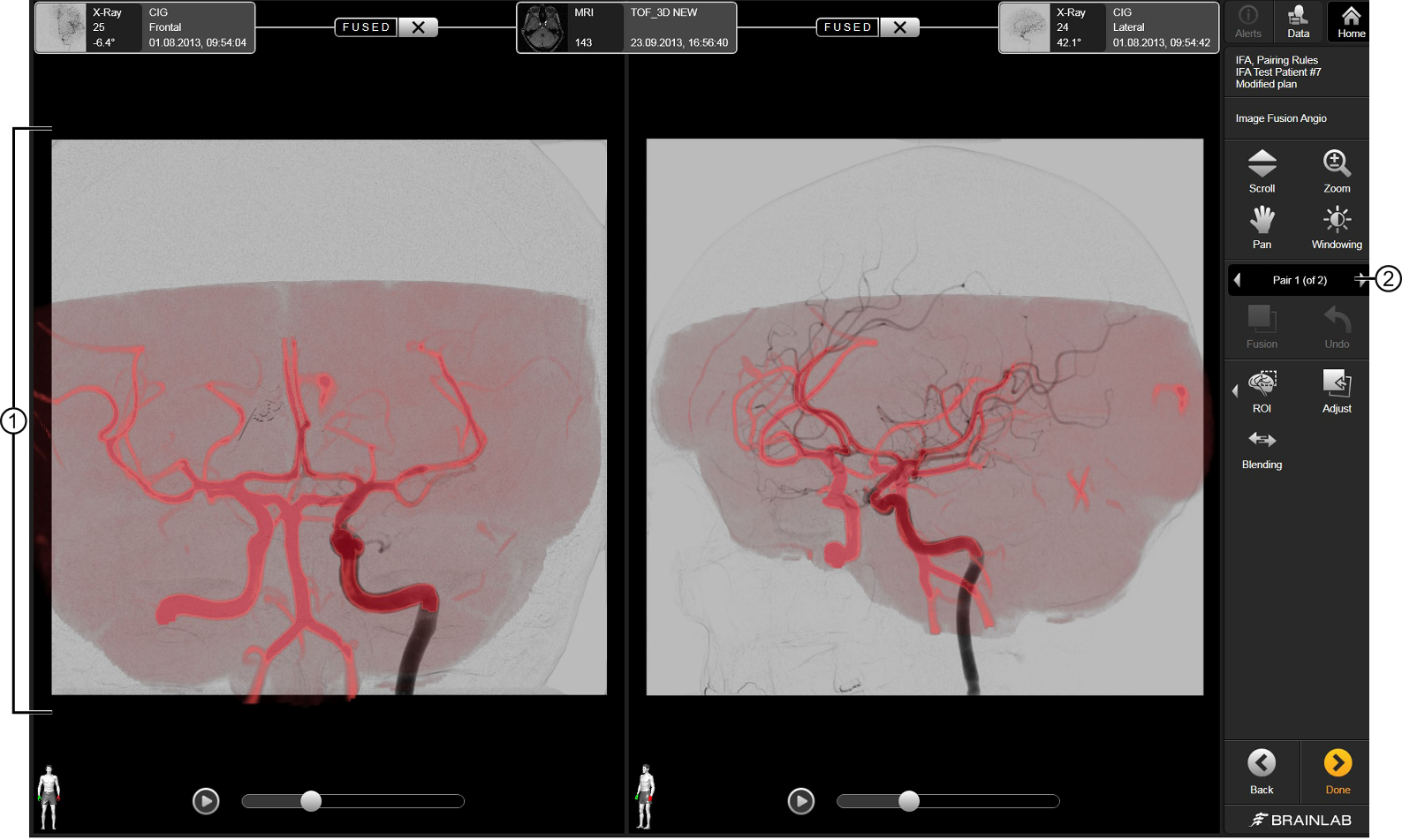

The initial screen shows the proposed fusion as calculated by the software.

The toggle indicates which image pair is displayed in the view area .

You can perform any of the following options:

  • Start a fusion
  • Set an ROI
  • Manually align the superimposed images
