Spine Layout

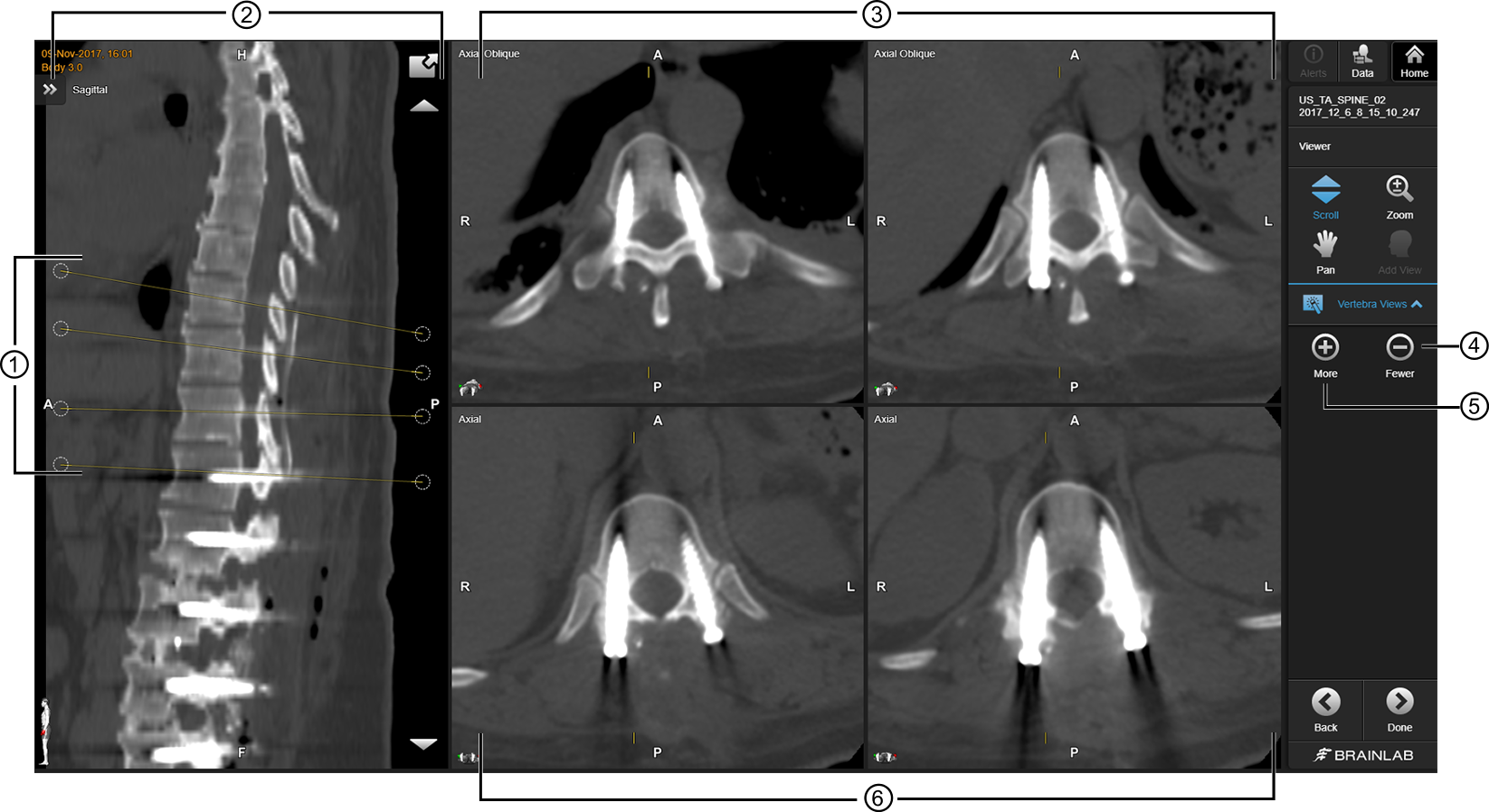

The Spine layout contains five standard views using one data set. Use More ⑤ and Fewer ④ in Vertebra Views to change the number of vertebra views displayed. The left-hand view port displays the slice positioning shown in the other views. The alignment can be adjusted by dragging the yellow markers ①.
No. | Description |
|---|---|
① | Slice markers. |
② | Sagittal view of the spine and its vertebrae. Also displayed are the slices shown in the other views. These slices can be repositioned. |
③ | Axial, coronal, sagittal or slice views for the individual slices. |
④ | Select Fewer to display fewer vertebra views. |
⑤ | Select More to display more vertebra views. |
⑥ | Axial, coronal, sagittal or slice views for the individual slices. |
