OAR DVH

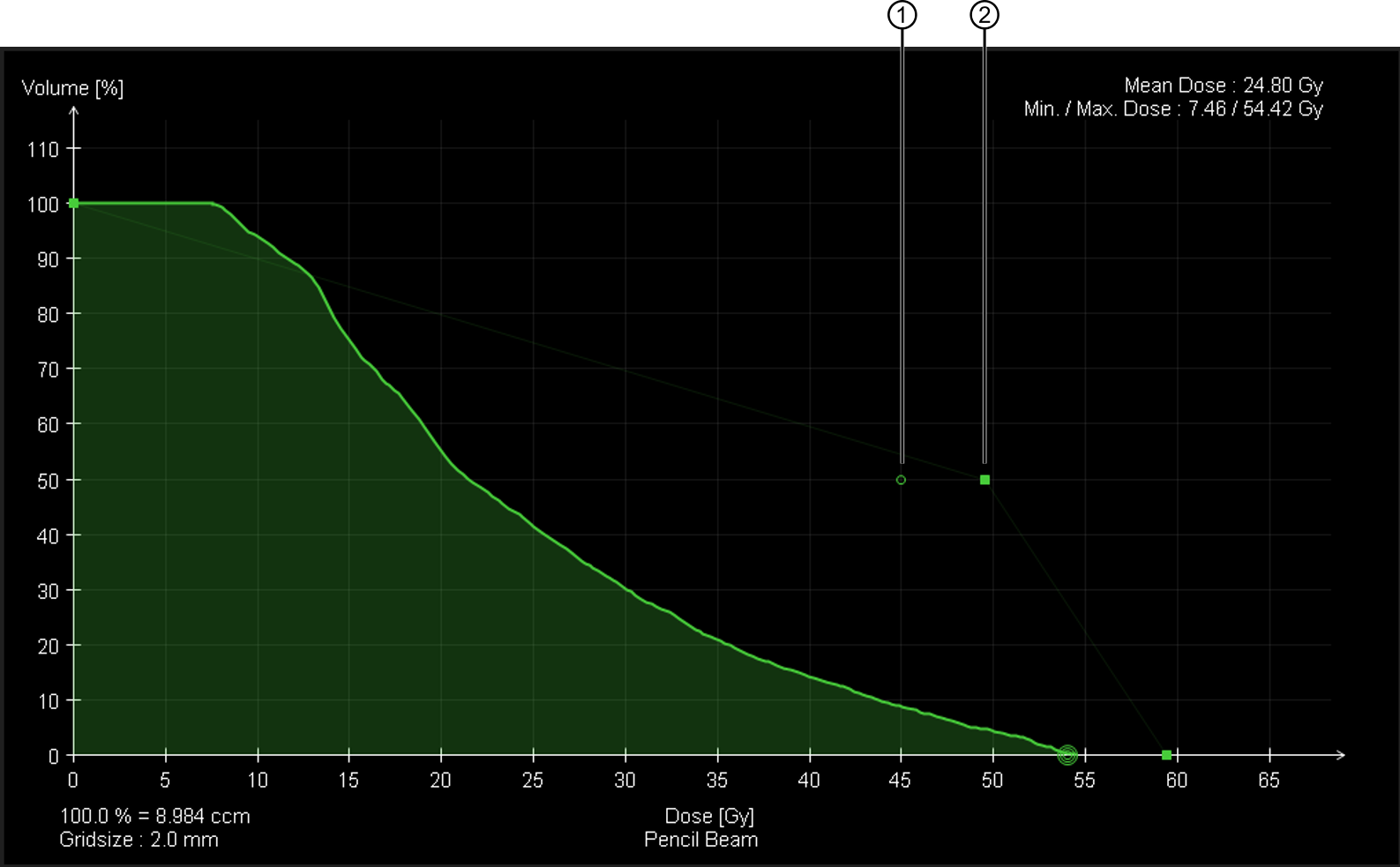

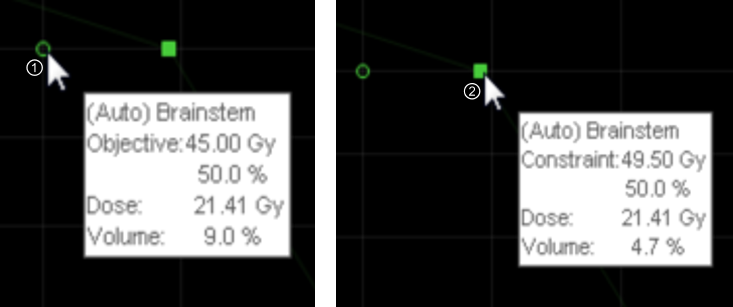

Objectives ① and constraints ② are shown as points on the DVH. To see more information, hover over a point with your mouse.
| No. | Component | Description |
|---|---|---|
|
① |
Objective (circle) |
The maximum applied dose a certain volume should receive to be tolerable. |
|
② |
Constraint (square) | The maximum dose a certain volume should receive to be safe. |
Objective and constraint may define the same point. The DVH view displays DVH Constraint Violated if the prescription is not met.
