Viewer

Table of Contents

Layouts

About Layouts

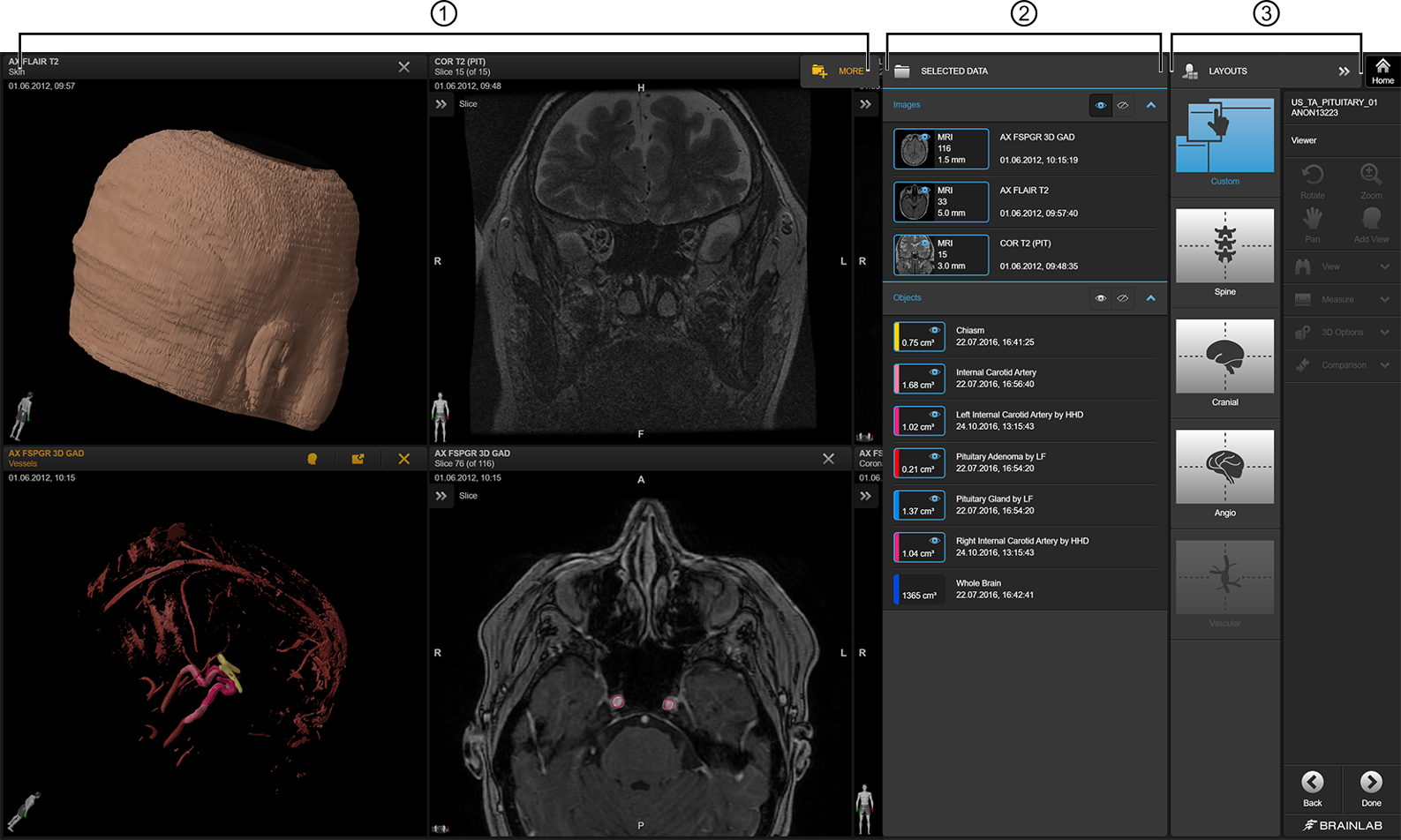

Viewer uses smart layouts, which automatically select the most relevant views based on your data set. To adjust the default layout, data set, and/or object list that is displayed, select Data.

No.

Description

View area

Data selection

Layout selection

Available Layouts

Layout

Details



Custom: Displays each selected data set side by side in the viewing area.



Spine: Displays between three and seventeen views containing:

  • A sagittal vertebrae view; displaying individual slices.
  • Four individual slices as depicted within the sagittal spine vertebrae view.


Cranial: Displays between four and six views containing:

  • A 3D reconstruction of the head using the skin reconstruction or bone/MR.
  • A 3D reconstruction of the head using the smart approach view.
  • ACS and slice views containing one to two image sets.


Angio: Displays between four and six views containing:

  • 3D reconstructions of vessels and bone/vessels. Availability of 3D views depends on the selected image data.
  • ACS, slice views and angiogram views.


Vascular: Displays five views containing:

  • ACS views.
  • 3D reconstructions of veins, arteries and skin/bone/vessels. Availability of 3D views depends on the selected image data.
  • A PDF report, if available.
