Fibertracking

Screen Layout

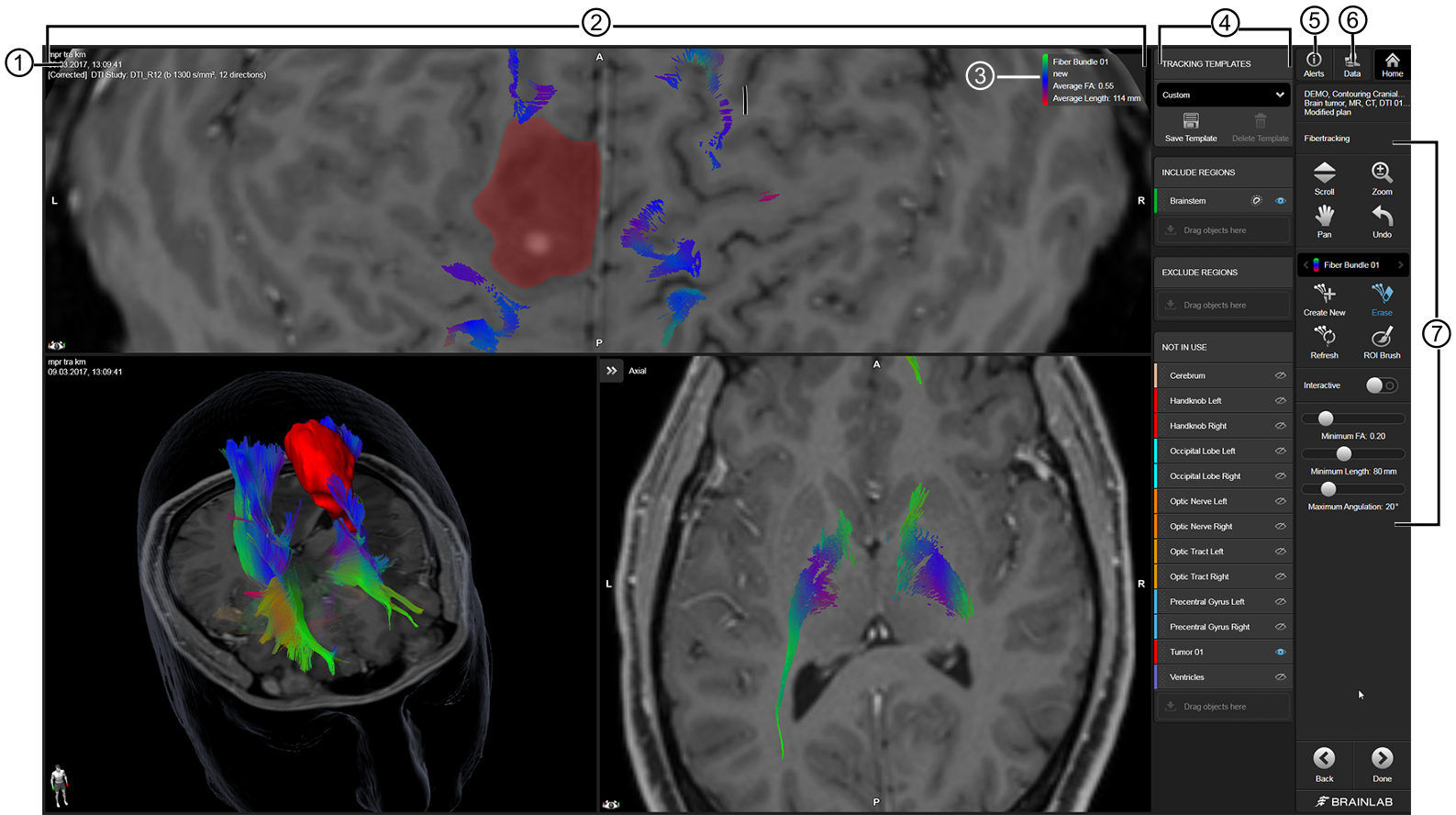

Main Screen Layout



No.ComponentDescription

Data and DTI study informationProvides information on the selected image set:

  • Date and time
  • DTI study

Views area

Depicts image data in either brain projection, axial, coronal, sagittal or 3D view.

Fiber bundle information

Provides information about the currently selected fiber bundle

When the fiber bundle information is selected, Data Selection opens directly to the fiber bundle properties:

  • Basis
  • Average FA
  • Average Length
  • Name
  • Comment (e.g., used DTI study, ROIs, settings)

Sidebar

  • Provides a list of default and customized TRACKING TEMPLATES
  • Provides ROIs that can arbitrarily be moved to either INCLUDE REGIONS, EXCLUDE REGIONS or NOT IN USE.

Alerts

Open this tab to see any alerts and/or additional information.

Data

Open this tab to change the DTI study, images, layouts, fiber bundles and objects.

Toolbar

Provides various functions:

  • Image viewing functions
  • Fiber bundle creation functions
  • Interactive function
  • Access to Fibertracking parameters
